Compact Lift

Compact Lift is our original vertical lift machine that we have been manufacturing since we developed it in 1999. With a unique and proven technology powered by four gears, running in homogeneous gear racks, we have created a very stable and reliable construction. Loads, from a few kilograms up to 1,500 kilograms per tray, can be handled with millimeter precision. The four-wheel drive keeps the load tray stable even if the load becomes uneven. In its most robust design, a Compact Lift is capable of storing a total of 100 tonnes in a safe and secure manner. This is a very flexible vertical lift machine, available in several sizes and is adaptable to the conditions in your premises and choice of picking method.

NEW ADDITION to the standard range – Compact Lift 4000

With load trays that are 4 meters wide, capable of loading up to 750 kilograms, we can now quickly increase your storage efficiency with heavier or bulkier products. By launching the Compact Lift 4000 directly into our standard range, with fast delivery, we hope to please many in the manufacturing and engineering industries.

This is how the Compact Lift works




Technical data

  • Max loading capacity: 100.000 kg
  • Height: 3000–16000 mm
  • Width: 1697–6929 mm
  • Depth:1554–4248 mm
  • Width loadingtray: 1220-6460 mm
  • Depth loadingtray: 350–1230 mm
  • Tray dividing: 25/50 mm
  • Max load per loadingtray: 300/1500 kg
  • Measurement of goods (25 mm intervals)
  • Measurement of goods: optional up to 1 000 mm
  • Safety curtain for staff protection
  • Warehouse optimization
  • Weight control
  • Password protection
  • Group authorities and accesses
  • Multiple lanugages
  • Ambient temperature©/Relative humidity (%RH) noncondensing: 2–40/10-85%
  • Voltage, 3-fas: 400 V
  • Current, AC 50Hz (A): 25/32

Equipment

Corrugated cardboard boxes

Corrugated cardboard boxes that can be divided into one, two, three or four compartments. They are delivered as a flat pack and are a flexible solution since they can be adjusted to several sizes.

You can easily remove the dividers to adjust the sizes of the compartments and adapt them to the size of the goods. The boxes are available with heights from 50 mm and up to 200 mm and are perfect for small and medium-sized goods. All boxes are kept in stock.

Weland box

A flexible plastic box specially designed for Weland Solutions’
vertical storage lifts. The box is designed for the highest possible filling ratio of load trays which optimises the filling ratio of
your storage space. The width and length of the Weland box can
be adjusted using dividers and dividing walls to create between
1 and 16 storage compartments per box

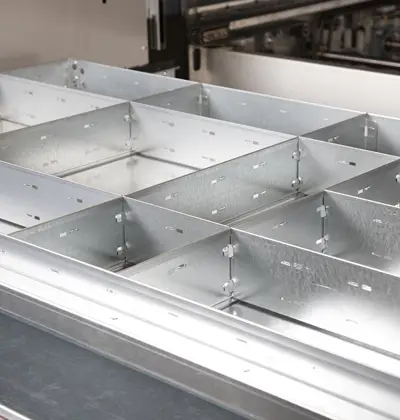

Metal fittings

Metal fittings, durable fittings made in galvanised metal. Perfect for industrial environments where the material is not exposed to oils. With metal fittings, the vertical storage lift is a fireproof storage site. Sizes from 100 x 100 mm up to the load trays full size. Heights from 50 to 250 mm. Flexible interior fitting, where the size of the compartment can be easily adapted to changing needs.

Vacuum formed fittings

The vacuum formed fittings are ideal for small items (screws, nuts, springs etc.) and is also ergonomic (soft corners, easy to pick from). It is made from durable plastic and can either be delivered in customised or standard format. The fittings are available in two standard designs: 800 x 1200 mm with 26 compartments, H = 100 mm, and 600 x 400 mm with 10 compartments, H = 50 mm.

Euro containers

The design of the container ensures stability during transit. The straight sides and modular sizes simplify stacking and storing. The solid containers come with a solid, smooth base as standard. Withstand temperatures between -30º and +70ºC.

Plastic bins

Designed for various warehouse and paternoster systems, where high demands are placed on a bin with a large internal volume. Transparent dividing walls with a label holder are available as accessories. The bin has a label space for self-adhesive labels on the front and rear edges.

Load tray mat

Thin rubber mat that can be rolled out on a load tray to stop items from moving about. The load tray mat is sold in complete rolls only.


Documentation

Documentation

Brochure WES article directory


Training courses- Weland SolutionsAB


Brochure Accessories and Fittings – Weland Solutions AB


Brochure Vertical Storage Lifts – Weland Solutions AB


Compact Lift and Compact Twin



Product sheet Maintenance contract


Product sheet Compact Lift 4000


Brochure optimize the pick


References

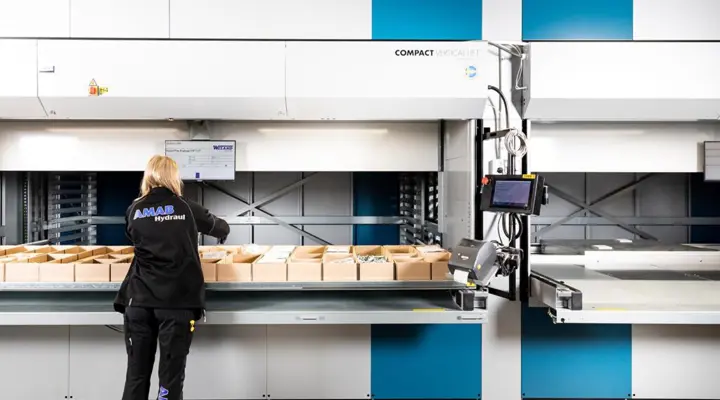

AMAB Hydraul lifts the automation of its warehouse
