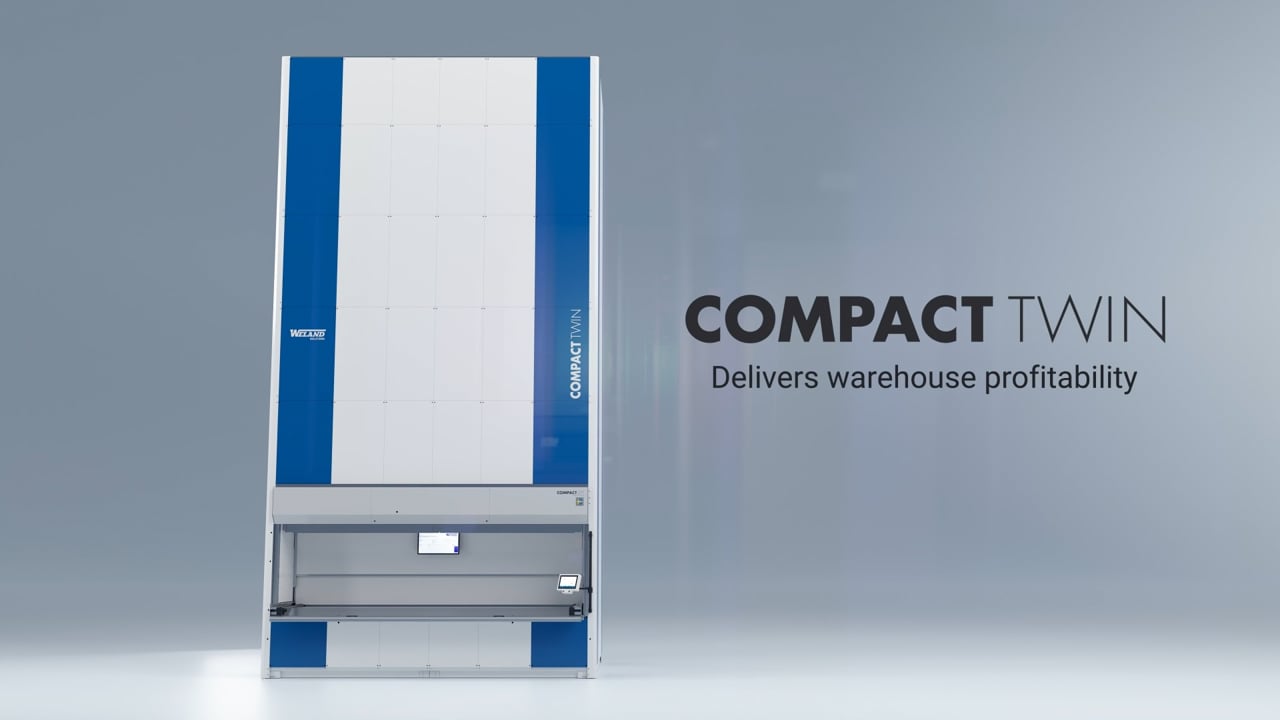

Compact Twin
When time is of the essence, Compact Twin is the natural answer. Because this vertical storage lift works with two trays at the same time, picking speeds can more than double.
Whilst the operator is picking from one tray, the vertical storage lift is retrieving the next tray. Compact Twin is the unbeatable option for businesses that require a high picking speed with full control, whether you are picking just a few or multiple instances of each item.
How picking works
The operator starts an order with a picking list in Compact Store. The vertical storage lift goes and retrieves the tray with the first pick. Whilst the operator is picking from that tray, the lift retrieves the next tray and places it in the waiting position. As soon as the first pick is acknowledged, the trays change position, allowing the next pick to begin. At this point, the vertical storage lift is already retrieving the next tray.
How Compact Twin works
Features
Password protection
Group rights and authorization
Multi-language selection
Safety curtain for personal protection
Warehouse optimization
Weight check
Technical Data
Max. load capacity:
50,000 kg
Max. load weight per tray:
300 – 500 kg
Height:
3,000 – 16,000 mm
Goods height feed:
(in 25 mm intervals)
Width:
2,307 – 4,137 mm
Goods height feet:
option up to 1,000 mm
Depth:
2 698 – 2 998 mm
Ambient temperature / Relative humidity (% RH) no condensation:
2 – 40/10 – 85 %
Tray width:
1 830 – 3 660 mm
Voltage, 3-phase:
400 V
Tray depth:
670 – 820 mm
Current, AC 50 Hz (A):
25/32
Tray division:
25 mm
Options
Compact Twin can be equipped with a whole host of optional extras that improve the user experience in different ways. Whilst it is better to purchase these optional extras at the same time as the vertical storage lift, it is also possible to retrofit them. In addition to the optional extras described below, you can also add ESD protection, retractable steps, and fall protection. Speak with your sales representative to find out which options are best suited to your business.
FIRE EXTINGUISHING SYSTEM
In some particularly sensitive environments, it may be necessary to equip your vertical storage lift with a fire extinguishing system. The purpose of this is to protect the main operation in the lift box. A powder extinguisher (Co2)is installed in the lift box, and a hose connected to the extinguisher is placed around the main motor. This hose works both as an extinguishing agent conveyor and a detector that, in the event of the accumulation of excessive heat or fire breaking out, burns off and starts fast and effective point extinguishing. The operator also receives an alarm in the operator control panel. This type of system is called Direct High Pressure system (DHP) and can be installed on all Compact vertical storage lifts.

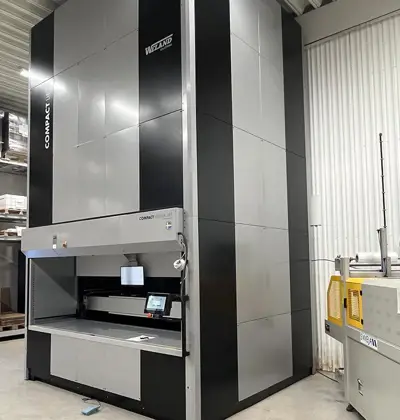

EXTERIOR COLOR CHANGE
Our vertical storage lifts are painted blue and silver as standard, but this can be changed to any color you require. To match your other fittings or the livery of your company, you can, as an optional extra, choose any RAL color(s) you want. You can also have your vertical storage lift painted in a single color.
HEIGHT MEASUREMENT
Our vertical storage lifts are equipped with a height measurement tool that goes up to 565 mm as standard. This can be optionally extended to measure a height of up to 990 mm.

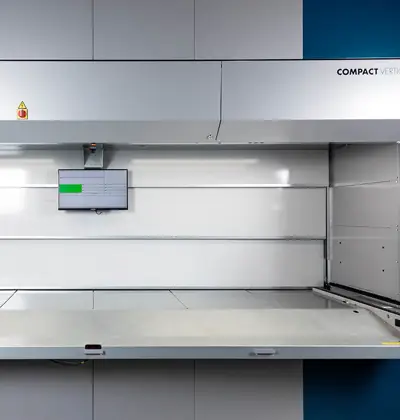

PANEL SHUTTER DOOR
Panel shutter doors create dust-free, attractive, and secure storage inside the vertical storage lift. Our specially adapted panel shutter doors make Compact Twin even more pleasing to the eye, reduce noise, and keep the products stored in the lift clean and fresh. In addition, they also prevent unauthorized parties from gaining access to the goods.

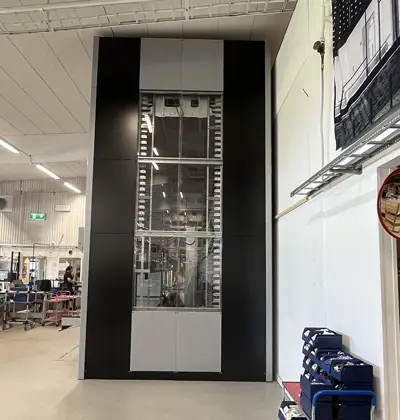

TRANSPARENT CLADDING
Swapping out parts of the upholstered panels on the ends of the vertical storage lift with transparent cladding creates an exciting design element. LED lighting inside the lift helps magnify the effect.

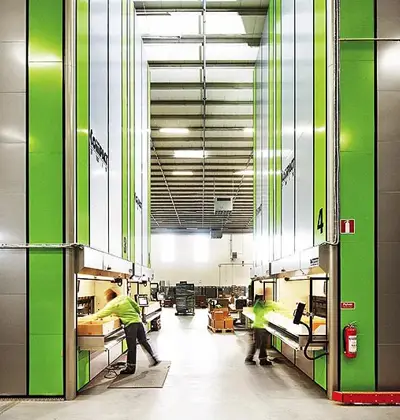

COMFORT PACK
The standard version of our vertical storage lifts are compliant with the requirements of the Machinery Directive in respect of noise levels. Should you wish to reduce noise levels even further, a comfort pack can be added that adds additional sound insulation at the service opening.
EXTRACTS
Extracts are usually necessary for handling larger and heavier items that require the use of lifting equipment or handling using trucks. The short extracts facilitates the picking of smaller items. Our 100% extract allows the tray to deliver goods fully out of the vertical storage lift so that it can be lifted upwards without any impediment. Extracts are available as fixed or telescopic solutions and supplied with complete safety equipment, including sound curtain, crush protection, and an emergency stop.
Interested in what a Compact Twin can do to streamline your warehouse operations? Get in touch and we’ll help build a complete solution for you.
