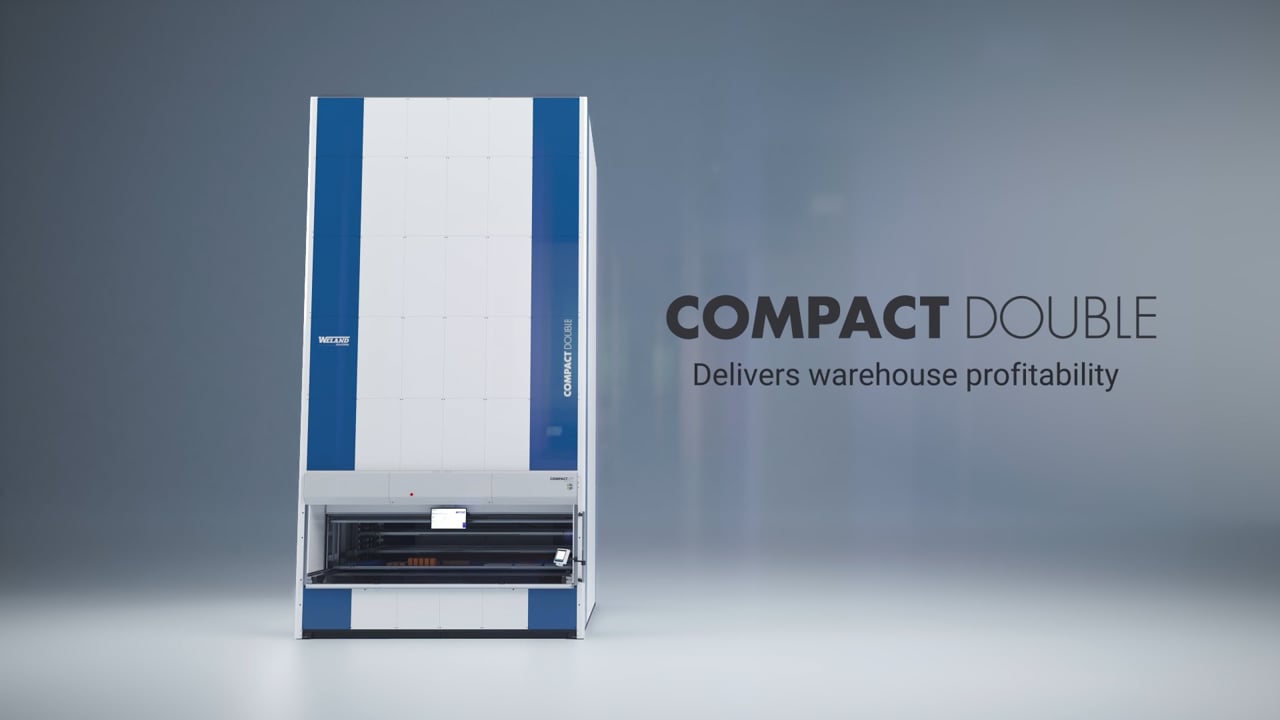

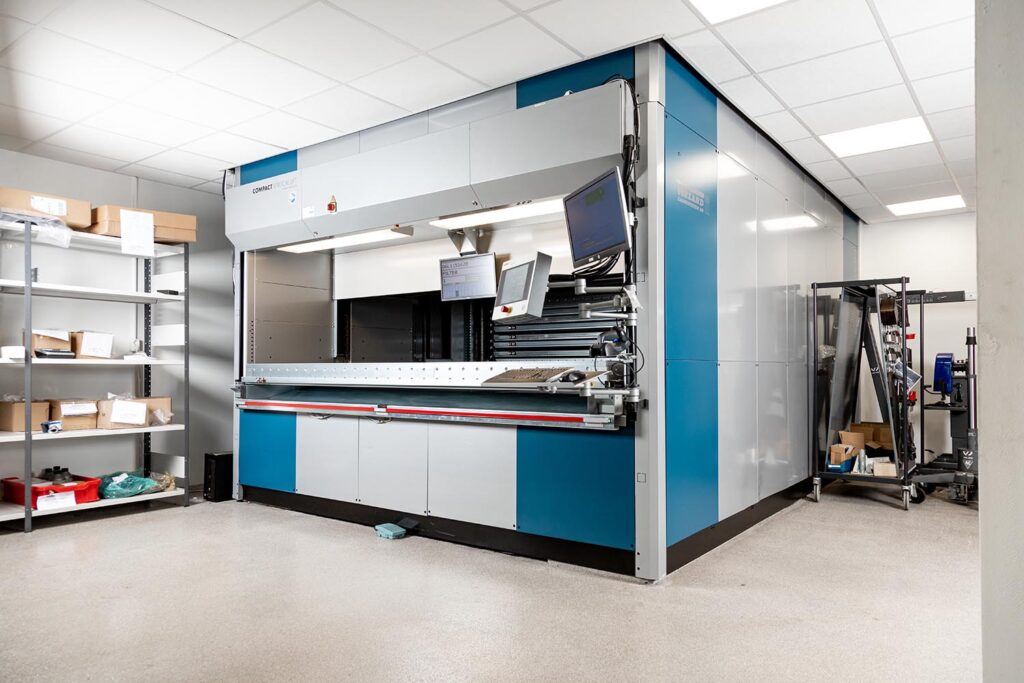

Compact Double

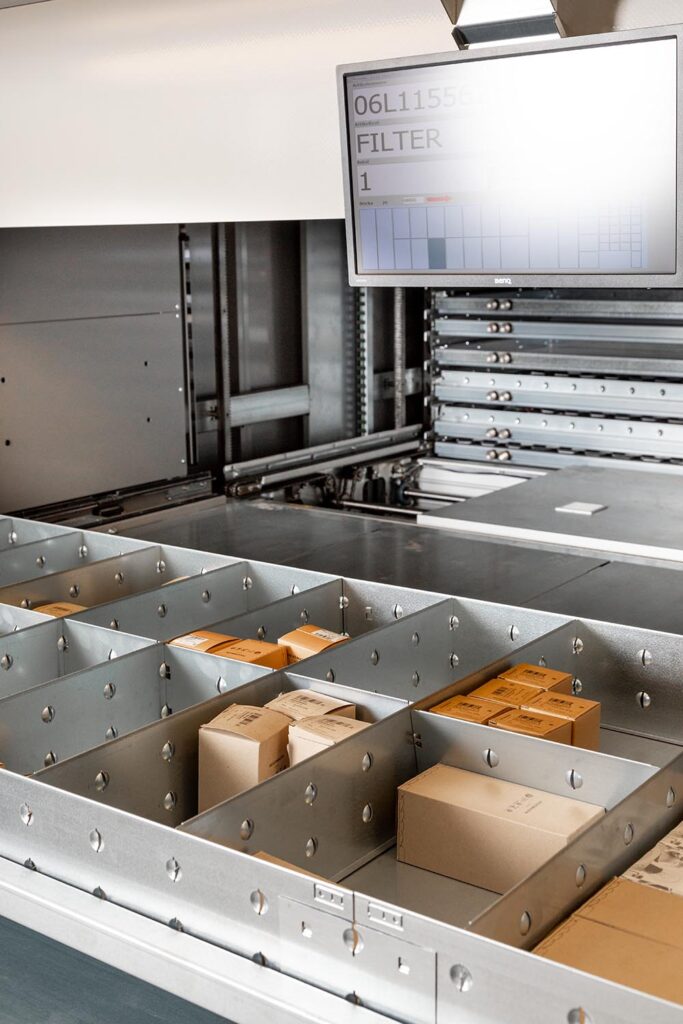

Where a lack of floor space has a critical impact on a business, Compact Double is the most space efficient storage solution. This vertical storage lift accommodates trays in double depths on each level and works with two trays at the same time.
Essentially, Compact Double is a Compact Twin, with all the same functions and equally high level of operational reliability. The ability to store double trays on each level maximizes storage space whilst maintaining efficient handling.
The twin function enables trays to be moved between different storage positions, allowing retrieval of the tray in the inner position. A Compact Double with twice the number of trays has a smaller footprint than two Compact Lifts holding the same number of trays. This makes it possible for businesses to streamline their use of storage space per square meter in the most efficient manner.
How Compact Double works
Features
Password protection
Group rights and authorization
Multi-language selection
Safety curtain for personal protection
Warehouse optimization
Weight check
Technical Data
Max. load capacity:
100,000 kg
Max. load weight per tray:
300/500/900 kg
Height:
3,000 – 16,000 mm
Goods height feed:
(in 25 mm intervals)
Width:
2,307 – 6,929 mm
Goods height measurement:
option up to 1,000 mm
Ambient temperature / Relative humidity (% RH) no condensation:
2 – 40/10 – 85 %
Depth:
4,898 – 5,370 mm
Voltage, 3-phase:
400 V
Tray width:
1,830 – 6,450 mm
Current, AC 50 Hz (A):
25/32
Tray depth:
820 mm
Goods height measurement (range):
25/50 mm
Options
Compact Double can be equipped with a whole host of optional extras that improve the user experience in different ways. Whilst it is better to purchase these optional extras at the same time as the vertical storage lift, it is also possible to retrofit them. In addition to the optional extras described below, you can also add ESD protection, retractable steps, and fall protection. Speak with your sales representative to find out which options are best suited to your business.
FIRE EXTINGUISHING SYSTEM
In some particularly sensitive environments, it may be necessary to equip your vertical storage lift with a fire extinguishing system. The purpose of this is to protect the main operation in the lift box. A powder extinguisher (Co2)is installed in the lift box, and a hose connected to the extinguisher is placed around the main motor. This hose works both as an extinguishing agent conveyor and a detector that, in the event of the accumulation of excessive heat or fire breaking out, burns off and starts fast and effective point extinguishing. The operator also receives an alarm in the operator control panel. This type of system is called Direct High Pressure system (DHP) and can be installed on all Compact vertical storage lifts.

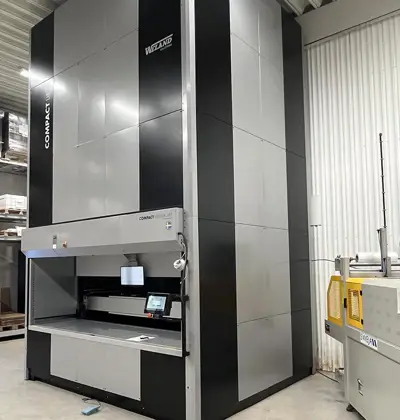

EXTERIOR COLOR CHANGE
Our vertical storage lifts are painted blue and silver as standard, but this can be changed to any color you require. To match your other fittings or the livery of your company, you can, as an optional extra, choose any RAL color(s) you want. You can also have your vertical storage lift painted in a single color.

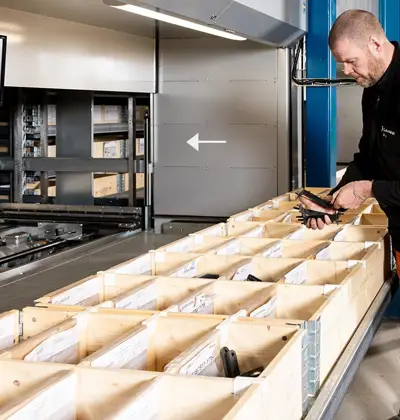

HEIGHT MEASUREMENT
Our vertical storage lifts are equipped with a height measurement tool that goes up to 565 mm as standard. This can be optionally extended to measure a height of up to 990 mm.
PANEL SHUTTER DOOR
Panel shutter doors create dust-free, attractive, and secure storage inside the vertical storage lift. Our specially adapted panel shutter doors make Compact Twin even more pleasing to the eye, reduce noise, and keep the products stored in the lift clean and fresh. In addition, they also prevent unauthorized parties from gaining access to the goods.

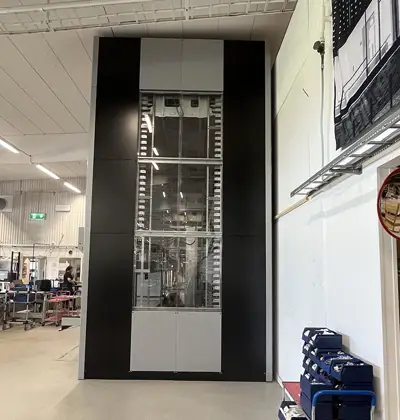

TRANSPARENT CLADDING
Swapping out parts of the upholstered panels on the ends of the vertical storage lift with Transparent cladding creates an exciting design element. LED lighting inside the lift helps magnify the effect.
COMFORT PACK
The standard version of our vertical storage lifts are compliant with the requirements of the Machinery Directive in respect of noise levels. Should you wish to reduce noise levels even further, a comfort pack can be added that adds additional sound insulation at the service opening.

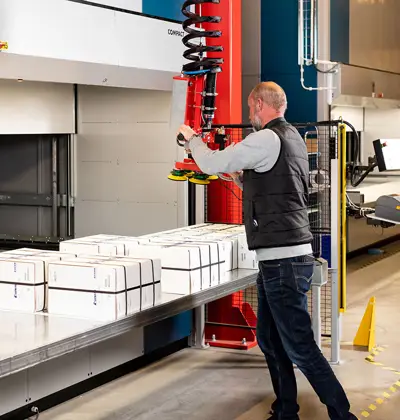

EXTRACTS
Extracts are usually necessary for handling larger and heavier items that require the use of lifting equipment or handling using trucks. The short extract facilitates the picking of smaller items. Our 100% extract allows the tray to deliver goods fully out of the vertical storage lift so that it can be lifted upwards without any impediment. Extracts are available as fixed or telescopic solutions and supplied with complete safety equipment, including sound curtain, crush protection, and an emergency stop.
Interested in what a Compact Double can do to streamline your warehouse operations? Get in touch and we’ll help build a complete solution for you.
